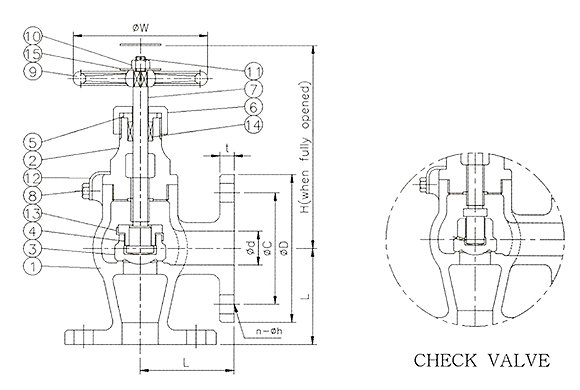

| Dimensions unit:mm | |||||||||||||
| Rating | SIZE | φd | L | H | FF Flange | φW | Weight (kg) | ||||||
| φD | φC | 七 | n—φh | ||||||||||
| 5K F7302 F7352 | 15A | 15 | 55 | 120 | 80 | 60 | 9 | 4-12 | 80 | 1.98/1.92 | |||
| 20A | 20 | 60 | 130 | 85 | 65 | 10 | 4-12 | 100 | 2.73/2.64 | ||||
| 25A | 25 | 65 | 145 | 95 | 75 | 10 | 4-12 | 125 | 3.44/3.30 | ||||
| 32A | 32 | 80 | 150 | 115 | 90 | 12 | 4-15 | 125 | 4.77/4.63 | ||||
| 40A | 40 | 85 | 165 | 120 | 95 | 12 | 4-15 | 140 | 5.99/5.81 | ||||
| 50A | 50 | 100 | 200 | 130 | 105 | 14 | 4-15 | 140 | 10.10 | ||||
| 65A | 65 | 115 | 220 | 155 | 130 | 14 | 4-15 | 160 | 15.60 | ||||
| 16K F7304 F7410 | 15A | 15 | 70 | 120 | 95 | 70 | 12 | 4-15 | 80 | 2.73/2.67 | |||
| 20A | 20 | 75 | 130 | 100 | 75 | 14 | 4-15 | 100 | 3.65/3.56 | ||||
| 25A | 25 | 85 | 145 | 125 | 90 | 14 | 4-19 | 125 | 5.16/5.02 | ||||
| 32A | 32 | 95 | 150 | 135 | 100 | 16 | 4-19 | 125 | 6.72/6.58 | ||||
| 40A | 40 | 100 | 165 | 140 | 105 | 16 | 4-19 | 140 | 8.13/7.98 | ||||
| Material List | |||||
| NO. | Parts | Material | |||
| 1 | Body | CAC406(BC6) | |||
| 2 | Bonnet | C3771 | |||
| 3 | Disc | C3771 | |||
| 4 | Disc nut | C3604 | |||
| 5 | Packing gland | C3604 | |||
| 6 | Packing gland nut | C3604 | |||
| 7 | Stem | C3771 | |||
| 8 | Set screw | SUS304 | |||
| 9 | Handwheel | FC200 | |||
| 10 | Hex.nut | C3604 | |||
| 11 | Split pin | C2600 | |||
| 12 | Lockplate | C2600 | |||
| 13 | Disc lock washer | C2600 | |||
| 14 | Packing | GRAPHITE | |||
| 15 | Name plate | C2801orSUS304 | |||
| Hydro.test pressure unit:kgf/cm² | |||||||||
| Rating | 5 | 16 | |||||||
| Shell | 10.5 | 33 | |||||||
| Seat | 7.7 | 24.2 | |||||||
| Max.working pressure unit:kgf/cm² | ||||||||||
| Rating Fluid condition | 5 | 16 | ||||||||
| Steam up to 205℃ | 5 | 16 | ||||||||
| Air,gas,oil and pulsation water | ||||||||||
| Non shock water | 7 | 22 | ||||||||
