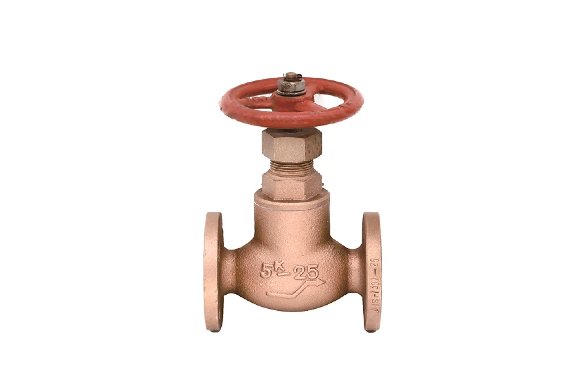

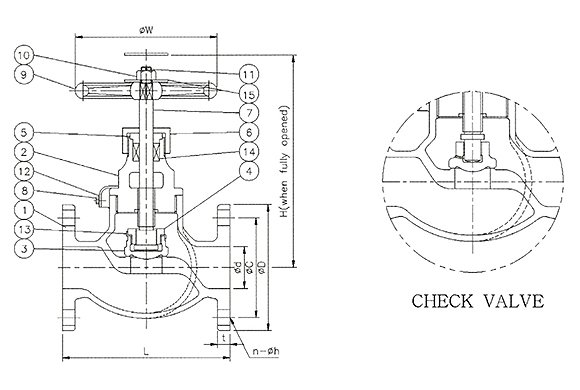

| Dimensions unit:mm | ||||||||||||||
| Rating | SIZE | φd | L | H | FF Flange | φW | Weight (kg) | |||||||
| φD | φC | t | n—φh | |||||||||||
| 5K F7301 F7351 | 15A | 15 | 100 | 130 | 80 | 60 | 9 | 4-12 | 80 | 2.02/1.96 | ||||
| 20A | 20 | 110 | 140 | 85 | 65 | 10 | 4-12 | 100 | 2.86/2.77 | |||||
| 25A | 25 | 120 | 160 | 95 | 75 | 10 | 4-12 | 125 | 3.54/3.41 | |||||
| 32A | 32 | 140 | 170 | 115 | 90 | 12 | 4-15 | 125 | 5.0/4.86 | |||||
| 40A | 40 | 160 | 190 | 120 | 95 | 12 | 4-15 | 140 | 6.48/6.30 | |||||
| 50A | 50 | 210 | 235 | 130 | 105 | 14 | 4-15 | 140 | 11.7 | |||||
| 65A | 65 | 250 | 260 | 155 | 130 | 14 | 4-15 | 160 | 17.0 | |||||
| 16K F7303 F7409 | 15A | 15 | 110 | 130 | 95 | 70 | 12 | 4-15 | 80 | 2.76/2.70 | ||||
| 20A | 20 | 120 | 140 | 100 | 75 | 14 | 4-15 | 100 | 3.72/3.63 | |||||
| 25A | 25 | 130 | 160 | 125 | 90 | 14 | 4-19 | 125 | 5.20/5.09 | |||||
| 32A | 32 | 160 | 170 | 135 | 100 | 16 | 4-19 | 125 | 6.91/6.77 | |||||
| 40A | 40 | 180 | 190 | 140 | 105 | 16 | 4-19 | 140 | 8.43/8.25 | |||||
| Material List | ||||
| NO. | Parts | Material | ||
| 1 | Body | CAC406(BC6) | ||
| 2 | Bonnet | C3771 | ||
| 3 | Disc | C3771 | ||
| 4 | Disc nut | C3604 | ||
| 5 | Packing gland | C3604 | ||
| 6 | Packing gland nut | C3604 | ||
| 7 | Stem | C3771 | ||
| 8 | Set screw | SUS304 | ||
| 9 | Handwheel | FC200 | ||
| 10 | Hex.nut | C3604 | ||
| 11 | Split pin | C2600 | ||
| 12 | Lockplate | C2600 | ||
| 13 | Disc lock washer | C2600 | ||
| 14 | Packing | GRAPHITE | ||
| 15 | Name plate | C2801orSUS304 | ||
| Hydro.test pressure unit:kgf/c m² | |||||||||||
| Rating | 5 | 16 | |||||||||
| Shell | 10.5 | 33 | |||||||||
| Seat | 7.7 | 24.2 | |||||||||
| Max.working pressure unit:kgf/cm² | ||||||||
| Rating Fluid condition | 5 | 16 | ||||||
| Steam up to 205℃ | 5 | 16 | ||||||
| Air,gas,oil and pulsation water | ||||||||
| Non shock water | 7 | 22 | ||||||
