| Dimensions unit:mm | ||||||||||||
| Rating | SIZE | φd | L | H | FF Flange | φW | ||||||
| φD | φC | t | n-φh | |||||||||
| 5K F7302R F7352R | 15A | 15 | 55 | 120 | 80 | 60 | 9 | 4-12 | 80 | |||
| 20A | 20 | 60 | 130 | 85 | 65 | 10 | 4-12 | 100 | ||||
| 25A | 25 | 65 | 145 | 95 | 75 | 10 | 4-12 | 125 | ||||
| 32A | 32 | 80 | 150 | 115 | 90 | 12 | 4-15 | 125 | ||||
| 40A | 40 | 85 | 165 | 120 | 95 | 12 | 4-15 | 140 | ||||
| 16K F7304R F7410R | 15A | 15 | 70 | 120 | 95 | 70 | 12 | 4-15 | 80 | |||
| 20A | 20 | 75 | 130 | 100 | 75 | 14 | 4-15 | 100 | ||||
| 25A | 25 | 85 | 145 | 125 | 90 | 14 | 4-19 | 125 | ||||
| 32A | 32 | 95 | 150 | 135 | 100 | 16 | 4-19 | 125 | ||||
| 40A | 40 | 100 | 165 | 140 | 105 | 16 | 4-19 | 140 | ||||

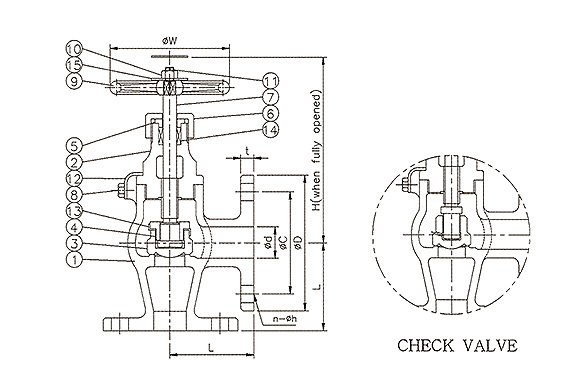

| Material List | ||||||||
| NO. | Parts | Material | ||||||
| 1 | Body | SCS13,14,16 | ||||||
| 2 | Bonnet | SCS13,14,16 | ||||||
| 3 | Disc | SCS13,14,16 | ||||||
| 4 | Disc nut | SUS304,316,316L | ||||||
| 5 | Packing gland | SUS304,316,316L | ||||||
| 6 | Packing gland nut | SUS304,316,316L | ||||||
| 7 | Stem | SUS304,316,316L | ||||||
| 8 | Set screw | SUS304 | ||||||
| 9 | Handwheel | FC200 | ||||||
| 10 | Hex.nut | SUS304 | ||||||
| 11 | Split pin | C2600 | ||||||
| 12 | Lockplate | SUS304 | ||||||
| 13 | Disc lock washer | SUS304 | ||||||
| 14 | Packing | GRAPHITE | ||||||
| 15 | Name plate | C2801orSUS304 | ||||||
| Hydro.test pressure unit:kgf/cm² | |||||||
| Rating | 5 | 16 | |||||
| Shell | 10.5 | 33 | |||||
| Seat | 7.7 | 24.2 | |||||
| Max.working pressure unit:kgf/cm² | ||||||||||
| Rating Fluid condition | 5 | 16 | ||||||||
| Steam up to 205℃ | 5 | 16 | ||||||||
| Air,gas,oil and pulsation water | ||||||||||
| Non shock water | 7 | 22 | ||||||||
