![MARINE EXPANSION JOINTISLIDING TYPE]](http://vhost-ln-s05-cdn.hcwebsite.com/3a06b6c26062065ce1871ad81e532134/data/thumb/res/en/20251114/31-1_b1bbaeb8.jpg_20251114135508_580x390.jpeg?v=2OTgPArI)
| NO | Name of part | Quanity | Standard Material | ||||||||
| 1 | Middle Ring | 1 | FCD450,SCS13 | ||||||||
| 2 | Follower | 2 | FCD450,SCS13 | ||||||||
| 3 | Packing | 2 | N.B.R.VITON | ||||||||
| 4 | Tight bolt/nut | 3 to 16 | SS400,SUS304 | ||||||||
| 5 | Stop bolt/washer | 2 | SUS304 | ||||||||

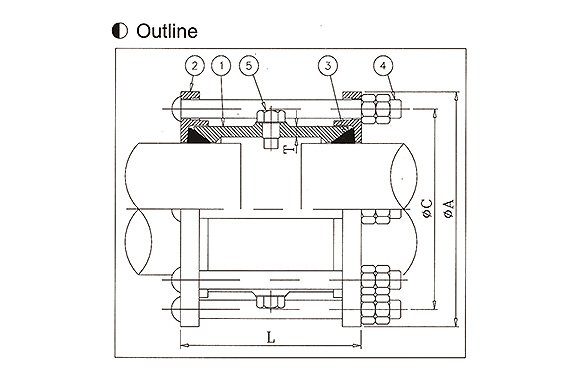

| Dimensions unit:mm | |||||||||||||||
| SIZE | PIPE 0.D | A | C | T | approx.L | TIGHT BOLT(QUAN-DIA-L.) | WEIGHT(kg) | ||||||||
| LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | ||||||||
| 40A | 48.6 | 110 | 94 | 5.2 | 273 | 153 | 3-12-305 | 3-12-185 | 6 | 3.5 | |||||
| 50A | 60.5 | 132 | 108 | 6 | 273 | 153 | 3-12-305 | 3-12-185 | 6.5 | 4.5 | |||||
| 65A | 76.3 | 149 | 125 | 7 | 274 | 154 | 4-12-305 | 4-12-185 | 9 | 6 | |||||
| 80A | 89.1 | 176 | 146 | 7.5 | 282 | 162 | 4-16-320 | 4-16-200 | 12 | 8.5 | |||||
| 100A | 114.3 | 204 | 174 | 9 | 284 | 164 | 6-16-330 | 4-16-200 | 16 | 11.5 | |||||
| 125A | 139.8 | 230 | 200 | 10 | 294 | 174 | 6-16-335 | 6-16-210 | 21 | 15 | |||||
| 150A | 165.2 | 262 | 230 | 11 | 300 | 180 | 6-16-345 | 6-16-215 | 27 | 19 | |||||
| 200A | 216.3 | 320 | 286 | 13 | 307 | 187 | 8-16-345 | 6-16-225 | 37.5 | 27 | |||||
| 250A | 267.4 | 373 | 339 | 13 | 309 | 189 | 8-16-350 | 8-16-225 | 47 | 31.5 | |||||
| 300A | 318.5 | 426 | 390 | 13 | 311 | 191 | 10-16-350 | 8-16-230 | 56 | 41 | |||||
| 350A | 355.6 | 466 | 430 | 13 | 311 | 191 | 10-16-350 | 10-16-230 | 62.5 | 45.5 | |||||
| 400A | 406.4 | 520 | 482 | 13 | 311 | 191 | 12-16-355 | 10-16-230 | 72 | 52.5 | |||||
| 450A | 457.2 | 578 | 538 | 13 | 315 | 195 | 12-16-375 | 12-16-235 | 82.5 | 61 | |||||
| 500A | 508.0 | 634 | 592 | 15 | 14 | 340 | 220 | 14-16-375 | 12-16-225 | 100 | 76 | ||||
| 550A | 558.8 | 686 | 644 | 15 | 14 | 340 | 220 | 14-16-385 | 14-16-225 | 105 | 83 | ||||
| 600A | 609.6 | 736 | 694 | 15 | 14 | 340 | 220 | 16-16-385 | 14-16-225 | 117 | 91 | ||||
| 650A | 660.4 | 790 | 746 | 15 | 14 | 340 | 220 | 16-16-385 | 16-16-225 | 130 | 99 | ||||
| 700A | 711.2 | 842 | 798 | 15 | 14 | 340 | 220 | 16-16-385 | 16-16-225 | 140 | 106 | ||||
| 750A | 762.0 | 894 | 850 | 15 | 14 | 340 | 220 | 16-16-385 | 16-16-225 | 151 | 115 | ||||
| 800A | 812.8 | 948 | 904 | 15 | 14 | 340 | 220 | 16-16-385 | 16-16-225 | 166 | 121 | ||||
