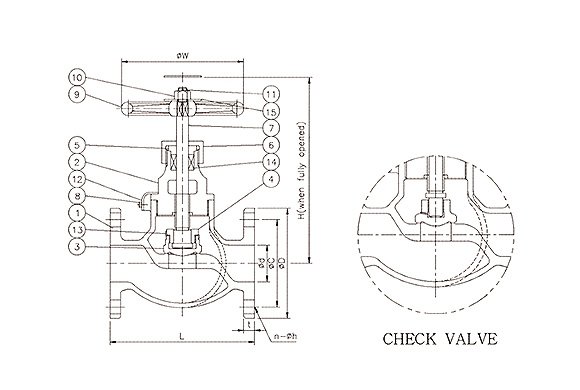

| Dimensions unit:mm | |||||||||||||||
| Rating | SIZE | φd | L | H | FF Fl ange | φW | |||||||||
| φD | 中C | t | n-φh | ||||||||||||
| 5K F7301R F7351R | 15A | 15 | 100 | 130 | 80 | 60 | 9 | 4-12 | 80 | ||||||
| 20A | 20 | 110 | 140 | 85 | 65 | 10 | 4-12 | 100 | |||||||
| 25A | 25 | 120 | 160 | 95 | 75 | 10 | 4-12 | 125 | |||||||
| 32A | 32 | 140 | 170 | 115 | 90 | 12 | 4-15 | 125 | |||||||
| 40A | 40 | 160 | 190 | 120 | 95 | 12 | 4-15 | 140 | |||||||
| 16K F7303R F7409R | 15A | 15 | 110 | 130 | 95 | 70 | 12 | 4-15 | 80 | ||||||
| 20A | 20 | 120 | 140 | 100 | 75 | 14 | 4-15 | 100 | |||||||
| 25A | 25 | 130 | 160 | 125 | 90 | 14 | 4-19 | 125 | |||||||
| 32A | 32 | 160 | 170 | 135 | 100 | 16 | 4-19 | 125 | |||||||
| 40A | 40 | 180 | 190 | 140 | 105 | 16 | 4-19 | 140 | |||||||
| Material List | |||
| NO. | Parts | Material | |
| 1 | Body | SCS13,14,16 | |
| 2 | Bonnet | SCS13,14,16 | |
| 3 | Disc | SCS13,14,16 | |
| 4 | Disc nut | SUS304,316,316L | |
| 5 | Packing gland | SUS304,316,316L | |
| 6 | Packing gland nut | SUS304,316,316L | |
| 7 | Stem | SUS304,316,316L | |
| 8 | Set screw | SUS304 | |
| 9 | Handwheel | FC200 | |
| 10 | Hex.nut | SUS304 | |
| 11 | Split pin | C2600 | |
| 12 | Lockplate | SUS304 | |
| 13 | Disc lock washer | SUS304 | |
| 14 | Packing | GRAPHITE | |
| 15 | Name plate | C2801orSUS304 | |
| Hydro.test pressure unit:kgf/cm² | |||||||||||
| Rating | 5 | 16 | |||||||||
| Shell | 10.5 | 33 | |||||||||
| Seat | 7.7 | 24.2 | |||||||||
| Max.working pressure unit:kgf/cm² | |||||||||||||
| Rating Fluid condition | 5 | 16 | |||||||||||
| Steam up to 205℃ | 5 | 16 | |||||||||||
| Air,gas,oil and pulsation water | |||||||||||||
| Non shock water | 7 | 22 | |||||||||||
