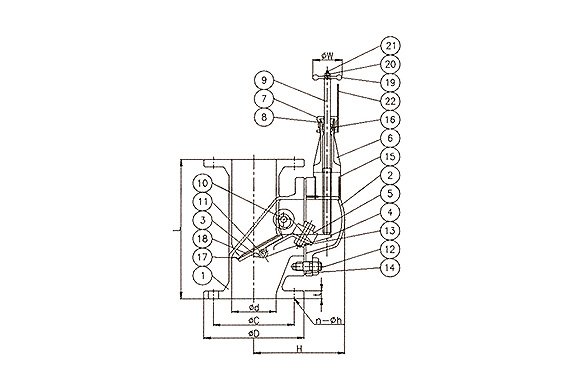

| Dimensions unit:mm | |||||||||
| Rating | SIZE | φd | L | H | FF Flange | φW | |||
| φD | φC | t | n-φh | ||||||
| 5K JIS F 3060 GLOBE | 50A | 50 | 210 | 135 | 130 | 105 | 14 | 4-15 | 100 |
| 65A | 65 | 240 | 145 | 155 | 130 | 14 | 4-15 | 100 | |
| 80A | 80 | 260 | 155 | 180 | 145 | 14 | 4-19 | 125 | |
| 100A | 100 | 280 | 175 | 200 | 165 | 16 | 8-19 | 125 | |
| 125A | 125 | 330 | 195 | 235 | 200 | 16 | 8-19 | 125 | |
| 150A | 150 | 360 | 215 | 265 | 230 | 18 | 8-19 | 125 | |
| 5K JIS F 3060R ANGLE | 50A | 50 | 170 | 135 | 130 | 105 | 14 | 4-15 | 100 |
| 65A | 65 | 200 | 145 | 155 | 130 | 14 | 4-15 | 100 | |
| 80A | 80 | 220 | 155 | 180 | 145 | 14 | 4-19 | 125 | |
| 100A | 100 | 250 | 175 | 200 | 165 | 16 | 8-19 | 125 | |
| 125A | 125 | 270 | 195 | 235 | 200 | 16 | 8-19 | 125 | |
| 150A | 150 | 310 | 215 | 265 | 230 | 18 | 8-19 | 125 | |
| Material List | |||
| NO. | Parts | Material | |
| 1 | Body | SC480 | |
| 2 | Bonnet | SC480 | |
| 3 | Dise | SC480 | |
| 4 | Arm | SC480 | |
| 5 | Blance weight | Pb | |
| 6 | Spindle box | CAC406(BC6) | |
| 7 | Packing gland nut | C3604 | |
| 8 | Packing gland | C3604 | |
| 9 | Stem | SUS304 | |
| 10 | Plug | SUS304 | |
| 11 | Bolt&Nut | SUS304 | |
| 12 | Bolt&Nut | SUS304 | |
| 13 | Bolt &Nut | SUS304 | |
| 14 | Gasket | NON ASBESTOS | |
| 15 | Gasket | PTFE | |
| 16 | Packing | GRAPHITE | |
| 17 | Gasket | RUBBER | |
| 18 | Gasket gland | C3604 | |
| 19 | Handle | FC200 | |
| 20 | Handle nut | C3604 | |
| 21 | Split pin | C2600 | |
| 22 | Indicator | C2801 | |
| Max.working pressure unit:kgf/cm² | ||||||||||
| Fluid condition | Maximum working pressure | |||||||||
| Non-shock water | 5 | |||||||||
| Max.working pressure unit:kgf/cm² | ||||||||||
| Shell hydraulic test | 5.1 | |||||||||
| Seat hydraulic test | 1.0 | |||||||||
