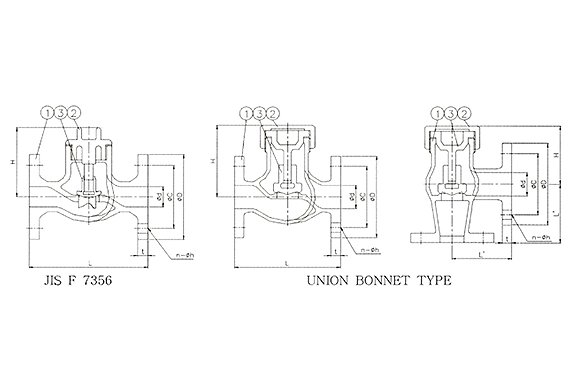

| Dimensions unit:mm | ||||||||||||||
| Rating | SIZE | φd | L | L' | H | FF Flange | Weight (kg) | |||||||
| φD | φC | t | n-φh | |||||||||||
| 5K F7356 | 25A | 25 | 120 | 一 | 77 | 95 | 75 | 10 | 4-12 | 2.39 | ||||
| 32A | 32 | 140 | 一 | 81 | 115 | 90 | 12 | 4-15 | 3.80 | |||||
| 40A | 40 | 160 | 一 | 91 | 120 | 95 | 12 | 4-15 | 4.95 | |||||
| 5K F7415 F7416 | 15A | 15 | 100 | 55 | 66/56 | 80 | 60 | 9 | 4-12 | 1.62/1.57 | ||||
| 20A | 20 | 110 | 60 | 71/59 | 85 | 65 | 10 | 4-12 | 2.17/2.07 | |||||
| 25A | 25 | 120 | 65 | 81/67 | 95 | 75 | 10 | 4-12 | 2.80/2.65 | |||||
| 32A | 32 | 140 | 80 | 83/65 | 115 | 90 | 12 | 4-15 | 3.92/3.68 | |||||
| 40A | 40 | 160 | 85 | 91/69 | 120 | 95 | 12 | 4-15 | 5.49/4.95 | |||||
| 16K F7417 F7418 | 15A | 15 | 110 | 70 | 66/56 | 95 | 70 | 12 | 4-15 | 2.37/2.36 | ||||
| 20A | 20 | 120 | 75 | 71/59 | 100 | 75 | 14 | 4-15 | 3.05/3.01 | |||||
| 25A | 25 | 130 | 85 | 81/67 | 125 | 90 | 14 | 4-19 | 4.42/4.36 | |||||
| 32A | 32 | 160 | 95 | 83/65 | 135 | 100 | 16 | 4-19 | 5.87/5.67 | |||||
| 40A | 40 | 180 | 100 | 91/69 | 140 | 105 | 16 | 4-19 | 7.67/7.12 | |||||
| Material List | ||||
| NO. | Parts | Material | ||
| 1 | Body | CAC406(BC6) | ||
| 2 | Bnooet | CAC406(BC6) | ||
| 3 | Disc | CAC406(BC6) | ||
| Hydro.test pressure unit:kgf/cm² | ||||||||
| Rating | 5 | 16 | ||||||
| Body | 10.5 | 33 | ||||||
| Chexk seat | 7.7->4 | 24.2->4 | ||||||
| Max.working pressure unit:kgf/cm² | ||||||||||
| Rating Fluid condition | 5 | 16 | ||||||||
| Air,pulsation water | 5 | 16 | ||||||||
| Non shock water | 7 | 22 | ||||||||
