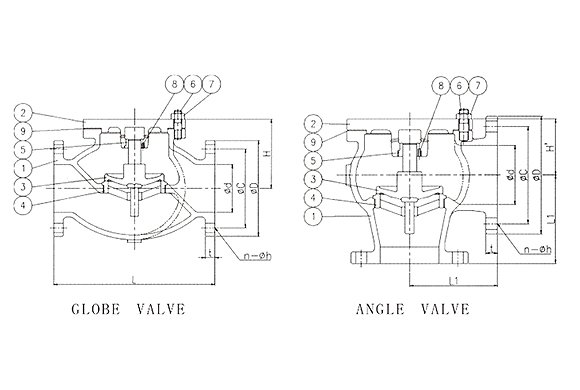

| Dimensions | unit:mm | |||||||||
| Rating | SIZE | φd | L/L1 | H/H' | FF Flange | |||||
| φD | φC | t | n-φh | |||||||
| 5K GLOBE | 50A | 50 | 210 | 107 | 130 | 105 | 16 | 4-15 | ||
| 65A | 65 | 250 | 124 | 155 | 130 | 18 | 4-15 | |||
| 80A | 80 | 280 | 129 | 180 | 145 | 18 | 4-19 | |||
| 100A | 100 | 340 | 146 | 200 | 165 | 20 | 8-19 | |||
| 125A | 125 | 410 | 166 | 235 | 200 | 20 | 8-19 | |||
| 150A | 150 | 430 | 188 | 265 | 230 | 22 | 8-19 | |||
| 5K ANGLE | 50A | 50 | 100 | 77 | 130 | 105 | 16 | 4-15 | ||
| 65A | 65 | 115 | 81 | 155 | 130 | 18 | 4-15 | |||
| 80A | 80 | 130 | 84 | 180 | 145 | 18 | 4-19 | |||
| 100A | 100 | 150 | 96 | 200 | 165 | 20 | 8-19 | |||
| 125A | 125 | 170 | 108 | 235 | 200 | 20 | 8-19 | |||
| 150A | 150 | 190 | 125 | 265 | 230 | 22 | 8-19 | |||
| 200A | 200 | 220 | 157 | 320 | 280 | 24 | 8-23 | |||
| NO. | Parts | Material | |||
1 | Body | FC200 | |||
| 2 | Bonnet | FC200 | |||
3 | Disc | SCS13 | |||
| 4 | Valve seat | SCS13 | |||
| 5 | Bush | C3604 | |||
| 6 | Stud bolt | SS400 | |||
| 7 | Hex.nut | SS400 | |||
| 8 | Set screw | SS400 | |||
| 9 | Gasket | NON ASBESTOS | |||
| Hydro.test pressure | unit:kgf/cm² | ||||||||||
| Rating | 5 | ||||||||||
| Hydraulic inspection for body | 10.5 | ||||||||||
| Watertight inspection for valve seat | 7.7to4 | ||||||||||
| Max.working pressure unit:kgf/cm² | |||||||||||
| Rating Fluid condition | 5 | ||||||||||
| 0il and pulsation water | 5 | ||||||||||
| Non-shock water of 120℃ or less | 7 | ||||||||||
