| SPECIFICATIONS | |||||||||||
| Applicable fluid | Water,Steam Air | ||||||||||
| Working pressure | Max16kgf/cm2g | ||||||||||
| Applicable Temp | Max.220℃ | ||||||||||
| Hydro.test pressure | Working pr x1.5times | ||||||||||
| End.connection | JIS 5K-FF,JJS16K-FF | ||||||||||
| MATERIAL | ||||||
| Parts | Material | |||||
| Body/Bonnet | FCD400 | |||||
| Handwheel | FC200 | |||||
| Disc | SUS304 orSCS2 | |||||
| Seat | SUS304 | |||||
| Stem | SUS304 or SCS2 | |||||
| Bush | C3604 | |||||
| Seat Ring | C3604 | |||||
| Packing | GRAPHITE | |||||
| Gasket | NON ASBESTOS | |||||

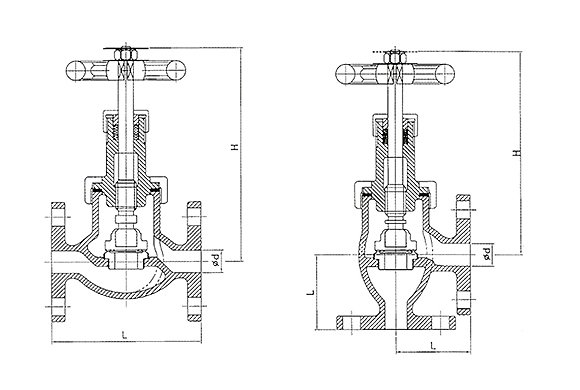

| GLOBE VALVE unit mm | ||||
| SIZE | d | L | H | |
| 5K 15A | 15 | 100 | 145 | |
| 5K 20A | 20 | 110 | 160 | |
| 5K 25A | 25 | 120 | 185 | |
| 5K 32A | 32 | 140 | 195 | |
| 5K 40A | 40 | 160 | 215 | |
| 16K 15A | 15 | 110 | 145 | |
| 16K 20A | 20 | 120 | 160 | |
| 16K 25A | 25 | 130 | 185 | |
| 16K 32A | 32 | 160 | 195 | |
| 16K 40A | 40 | 180 | 215 | |
| ANGLE VALVE unit mm | |||
| SIZE | d | L | H |
| 5K 15A | 15 | 55 | 135 |
| 5K 20A | 20 | 60 | 150 |
| 5K 25A | 25 | 65 | 175 |
| 5K 32A | 32 | 80 | 180 |
| 5K 40A | 40 | 85 | 200 |
| 16K 15A | 15 | 70 | 135 |
| 16K 20A | 20 | 75 | 150 |
| 16K 25A | 25 | 85 | 175 |
| 16K 32A | 32 | 95 | 180 |
| 16K 40A | 40 | 100 | 200 |
